Product Specification

Type

Cutting Range
(mm)

Stock Removal
(Ø/mm)

Cutting Length
(m)

Vc (m/min)

Feed
(Mm/U)

Motor Power
(KW)

Cooling Flow (L/min)

SROK
SROF

63-500

0.5-2

250-300

2-4

30-55

4*D

1. Cutter body

Diameter range	Order number	Number
Ø63-Ø75	S801- xx.xx	1
Ø80-Ø120	S801- xx.xx	1
Ø125-Ø150	S801- xx.xx	1
Ø160-Ø500	S801- xx.xx	1

2. Cage

Diameter range	Order number	Number
Ø63-Ø75	802- xx.xx	1
Ø80-Ø120	802- xx.xx	1
Ø125-Ø150	802- xx.xx	1
Ø160-Ø500	802- xx.xx	1

3. Blade

Diameter range	Order number	Number	Screws
Ø63-Ø75	DNGX-100608	4	M5mm
Ø80-Ø120	DNGX-100608	4	M5mm
Ø125-Ø150	DNGX-100608	4	M5mm
Ø160-Ø500	DNGX-100608	4	M5mm

4. Blade briquetting

	Diameter range	Order number	Number	Screws
	Ø63-Ø630	BNGX-2515	4	M5mm

5. Front supporting

Diameter range	Order number	Number	Screws
Ø80-Ø110	801-1893	4	M6.0mm
Ø120-Ø140	801-25125	4	M6.0mm
Ø150-Ø160	801-30113	4	M6.0mm
Ø170-Ø200	801-40110	4	M8.0mm
Ø210-Ø270	801-40133	4	M8.0mm
Ø280-Ø320	801-50195	4	M8.0mm
Ø360-Ø420	801-80260	4	M8.0mm
Ø500-Ø630	801-100260	4	M8.0mm

6. Front support gasket

Diameter range	Order number	Number	Screws
Ø80-Ø110	801-1893-0.1	4	M6.0mm
Ø120-Ø140	801-25125-0.1	4	M6.0mm
Ø150-Ø160	801-30113-0.1	4	M6.0mm
Ø170-Ø200	801-40110-0.1	4	M8.0mm
Ø210-Ø270	801-40133-0.1	4	M8.0mm
Ø280-Ø320	801-50195-0.1	4	M8.0mm
Ø360-Ø420	801-80260-0.1	4	M8.0mm
Ø500-Ø630	801-100260-0.1	4	M8.0mm

7. Rear supporting

Diameter range	Order number	Number	Screws
Ø80-Ø110	804-2050	4	M6.0mm
Ø120-Ø140	804-2550	4	M6.0mm
Ø150-Ø200	804-3050	4	M6.0mm
Ø210-Ø630	804-3080	4	M6.0mm

8. Rear support gasket

Diameter range	Order number	Number	Screws
Ø80-Ø110	804-2050-0.1	4	M6.0mm
Ø120-Ø140	804-2550-0.1	4	M6.0mm
Ø150-Ø200	804-3050-0.1	4	M6.0mm
Ø210-Ø630	804-3080-0.1	4	M6.0mm

9. Bakelite strip

Diameter range	Order number	Material Science
Ø80-Ø90	802-0825	M35
Ø100-Ø159	802-1435	M35
Ø160-Ø630	802-2045	M35

10. Bushes

	Diameter range	Order number	Number
	ØD	803-xx.xx	1

Note: 1. All specifications of boring head taper sleeves can be customized. 2. Contact the manufacturer for details of other accessories. 3. The length of the boring bar is approved according to the machine tool and processing length.

Product Properties

1. Rough skiving, finish skiving and roller burnishing are integrated to complete the inner wall of old-drawn pipe machining at one time

2. 2 + 2 inserts are used for cutting, and unique angle design ensures the straight movement of boring head.

3. Yaw, straightness and symmetry errors can be compensated

4. Automatic rise and shrinks improves the working rate of machine tools and reduces the labor intensity

5. The machining efficiency is 5-10 times of that of traditional tools

6. Rising and shrinking pressure: 4-10mpa

Customer's Case

image023(001)

Application

QA&QC

We have an independent skiving and roller burnishing tool laboratory, equipped with German imported three-dimensional testing equipment, two-dimensional testing equipment, dynamic balance equipment and other high-end measuring equipment, to escort each tool out of the factory.

Warehouse

Packing, Storage, Handling and Transportation

Strategic Partners

We aim to "become a world-class deep hole tool manufacturers, service providers" as the development goal, demonstrates rigorous style, first-class product quality, dedicated service for all customers; Strategic partners are as below:

Hot Tags: srok burnishing tool hydraulic cylinder, China, suppliers, manufacturers, customized, wholesale, bulk, discount, quotation, made in China

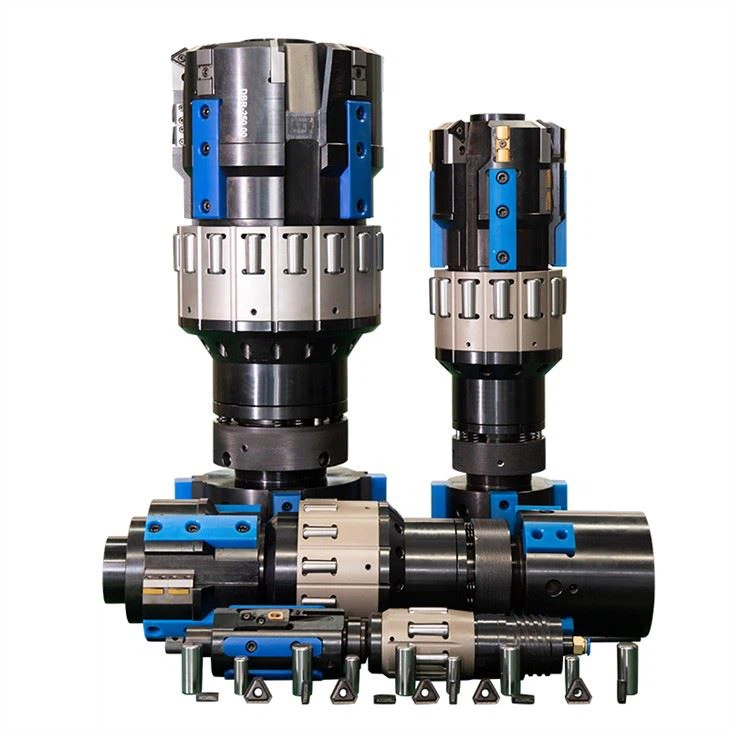

Srok Burnishing Tool Hydraulic Cylinder
